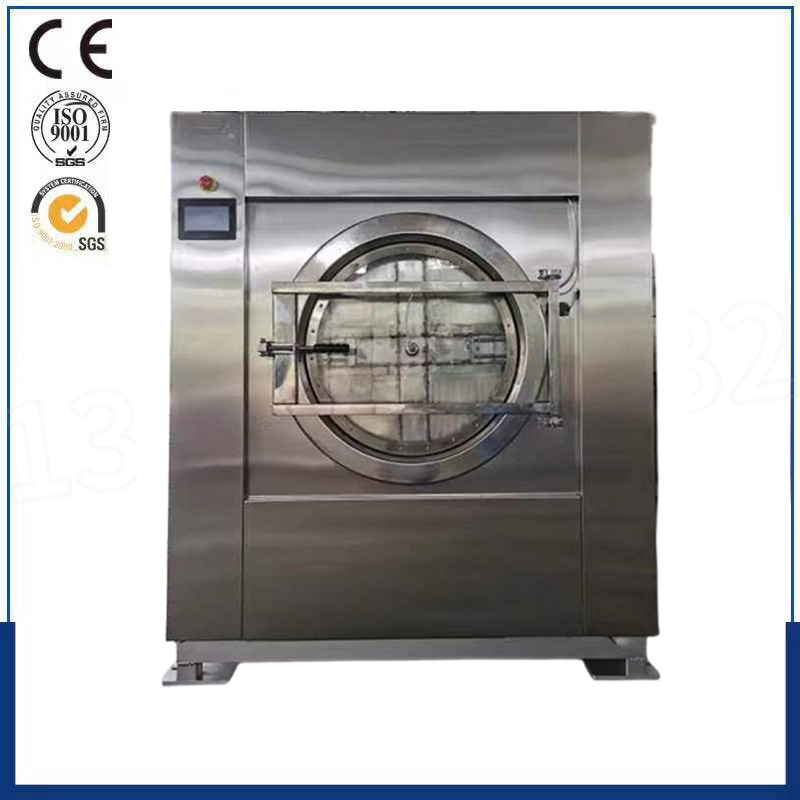

XTQ-100 latex washing and drying integrated machine
-
XTQ-100 latex washing and drying integrated machine
-
XTQ-130 latex washing and drying integrated machine
一、 Main Parameter for Washing Extracting Drying Machine
| XTQ-100 | XTQ-130 | |
rated capacity | |||
Min | kg | 70 | 90 |
Max | kg | 100 | 130 |
Drum | |||
Diameter | mm | 1470 | 1470 |
Diameter deepness | mm | 880 | 1160 |
Hight | mm | 2750 | 2750 |
Length | mm | 1700 | 1700 |
Width | mm | 2050 | 2330 |
Drum speed | |||
Washing rotate speed | r/min | 31 | 31 |
Steam Pressure | Mpa | 0.4-0.6 | 0.4-0.6 |
Pump | kw | 0.37 | 0.37 |
Fan Motor | kw | 2.2 | 2.2 |
Motor | kw | 11 | 15 |
Inverter | kw | 18 kw-3 kw | 22 kw-3 kw |
Draining valve | mm | DN100*2 | DN100*2 |
Dry Steam Pipe |
| DN40 | DN40 |
Water Inlet Valve | |||
Wind Exhaust Pipe |
| DN250 | DN250 |
Cold water pipe |
| 3/2"" | 3/2" |
Steam pipe |
| 1" | 1" |
Power supply |
| Standard:380+N-3PH-50HZ | |
2、 Product Introduction
Product Introduction: The latex washing and drying integrated machine has a fully computerized LCD human-machine dialogue operation interface, a large Chinese display screen, and 30 different washing programs to choose from. It can meet any washing and drying requirements, fully realizing the automation of washing, bleaching, jigging, drying and other processes. It can be safely placed on any floor without the need for a foundation. The fully automatic washing and drying integrated machine adopts a frequency conversion system, which is easy to adjust speed, stable to start with low noise, obvious energy-saving effect, and simple and reliable transmission structure. The latex washing and drying integrated machine is designed with a fully enclosed drainage frame structure to reduce pollution and maintain a dry and clean workplace. Both the inner and outer cylinders are made of 304 stainless steel. Improved service life. The stainless steel refined door and pneumatic safety device greatly improve safety during use. The rear concentrated oil lubrication pump design achieves automatic lubrication of the transmission system lubricant, with advanced and humanized care. This series of models has options for steam heating, electric heating, and natural gas heating.
